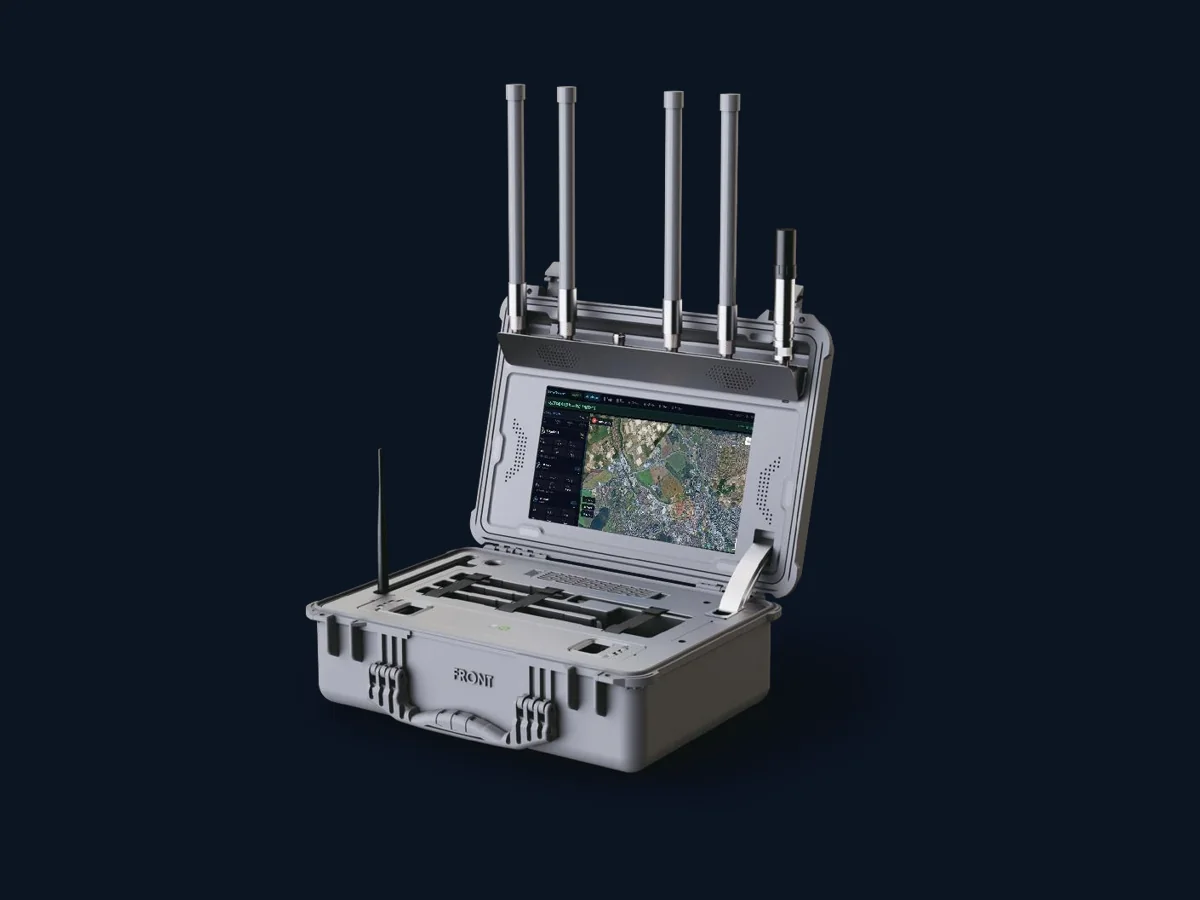

DD5 — Portable Drone Detection System
A rugged portable RF detection station with a 13.3-inch touchscreen for rapid, covert deployment and real-time airspace awareness.
Overview
Covert, portable, mission-ready.
DD5 is a self-contained passive RF detection system. It detects and classifies drones by their radio signatures without emitting, making it ideal for covert operation and mobile teams. A replaceable battery and modular design support long field missions and easy expansion.
Key specifications
DD5 technical data.
| Detection bands | 100 MHz – 6 GHz |
|---|---|
| Detection distance | 0–5 km (depends on environment and drone type) |
| Protocol cracking | CRPC, Drone ID, Remote ID |
| Detection quantity | >20 drones simultaneously |
| Power supply | Built-in lithium battery or AC 110–240 V |
| Continuous runtime | 6–7 hours |
| Dimensions | 470 × 357 × 176 mm (closed) |
Where it fits
The detection layer of the protection cycle.
DD5 feeds detections into the DroneDefender operational picture alongside radar, optical PTZ and acoustic sensors — giving the operator one fused view and an evidence trail. Request a quote or a live demo below.
Ready to discuss your site?
Start with a short consultation, live demo or structured pilot program.
